New Stacking Module for 90 Cams integration

[admin]

C-MOR has released an update on the Stacing Modul to integrate up to 90 Cams with 6 C-MOR Video Surveillance Units as one Login platform.

The Stacking Modul has following advantages:

• Connect up to 6 C-MORs to 1 logicatl unit, with one single login to access all cams and recordings
• Split load of high resolution cameras to multiple hardware C-MORs/units
• Expand C-MORs which are fully occupied with 15 cameras
• Split cams to multiple browser windows

The configuration page on the master looks as follows:

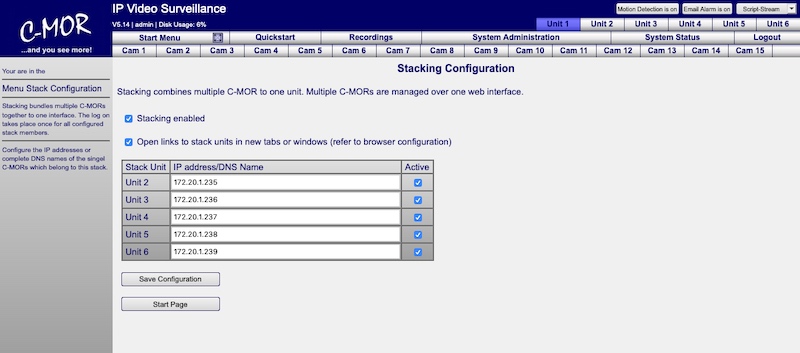

C-MOR Stacking Master Configuration.


Once the stacking is configured the buttons to access other C-MORs are on the top left of the C-MOR web page:

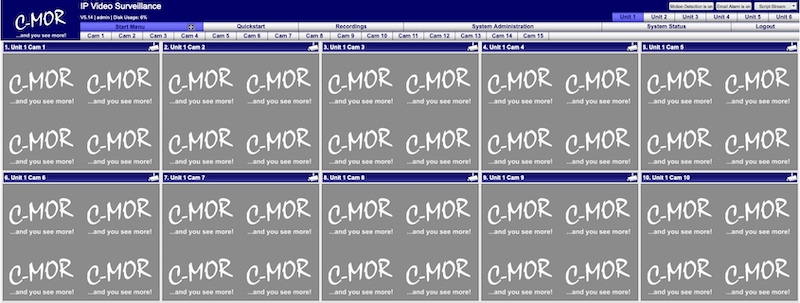

C-MOR Stacking Master View


The view of the first stacking slave:

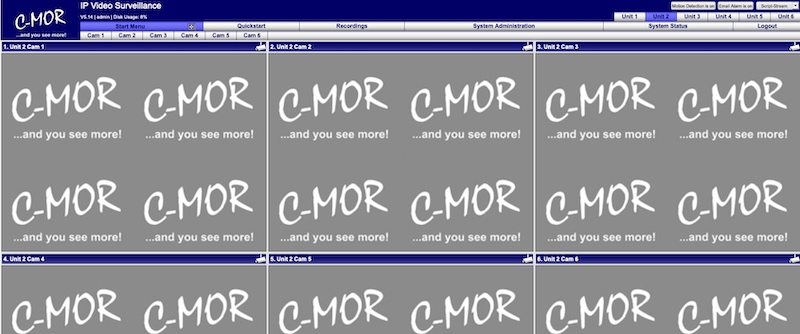

C-MOR Stacking Slave View


On the iPhone the Stacking Master view:

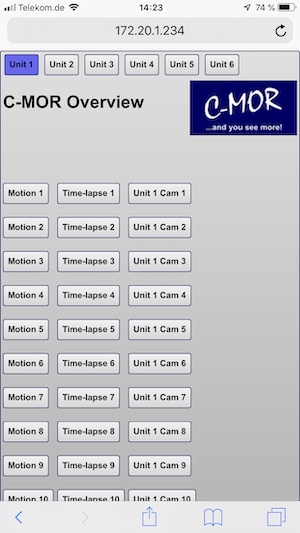

C-MOR Stacking Master iPhone View


The Stacking Slave view on the iPhone.

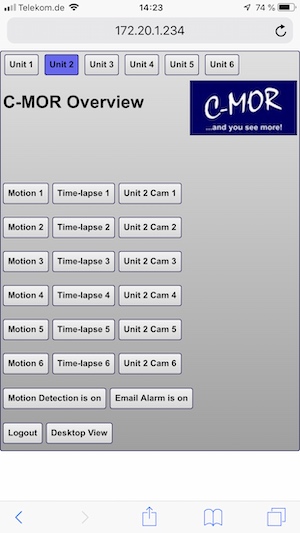

C-MOR Stacking Slave View iPhone.


Please use the C-MOR contact form if you have questions regarding the C-MOR Stacking Module:

https://www.c-mor.com/video-surveillanc ... ntact-form
